Bolt & Screw

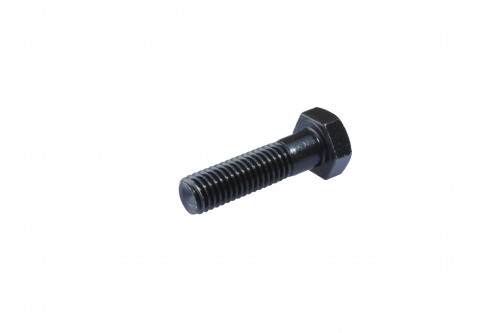

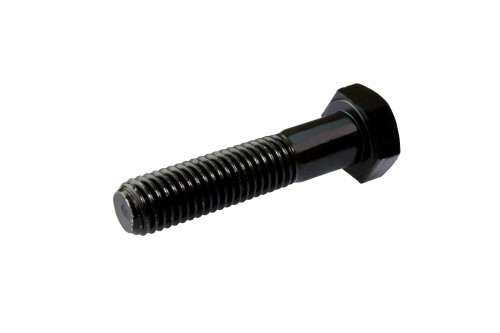

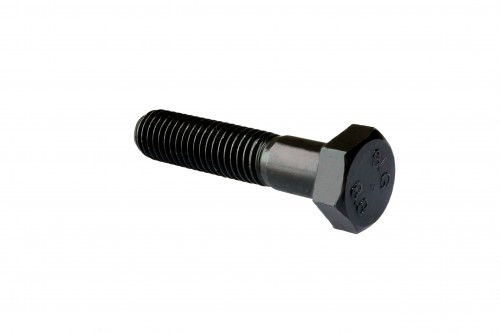

Hexagon Bolt Half Thread 931

Hexagon Bolt Half Thread 931 - Image 2

Hexagon Bolt Half Thread 931 - Image 3

Hexagon Bolt Half Thread 931 - Image 4

Hexagon Bolt Half Thread 931

Category Bolt & Screw

Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations.


Diameter	M4	M5	M6	M8	M10	M12	M14	M16	M20
Length (mm)
4
5
6
8	1.49	2.38	3.74
10	1.64	2.63	4.08	9.1
12	1.8	2.87	4.42	9.8
14			4.76	10.5
16	2.1	3.37	5.11	11.1	19.2	27.7
18			5.45
20	2.41	3.87	5.8	12.3	21.2	31
25	2.8	4.49	6.65	13.9	23.7	34.1		70.2
30	3.19	5.11	7.51	15.5	26.2	37.7	57.9	76.9
35	3.57	5.73	8.37	17.1	28.7	41.3	62.9	83.5
40	3.96	6.35	9.23	18.7	31.2	44.9	67.9	90.2	155
45	4.34	6.99	10.1	20.3	33.7	48.5	72.9	97.1	165
50	4.73	7.59	11	21.8	36.2	52	77.9	103	176
55			11.9	23.4	38.7	55.6	82.8	110	186
60			12.7	25	41.3	58.2	87.8	117	196
65			13.6	26.6	43.8	62.8	92.8	123	207
70			14.4	28.2	46.3	66.4	97.9	130	217
75			15.3	29.8	48.8	70	102	137	227
80			16.2	31.4	51.3	73.6	107	144	238
85				33	53.8	77.2	112	150	247
90				34.6	56.3	80.8	117	157	258
95				35.2	59.8	84.4	122	164	268
100				37.7	61.3	88	127	170	279
110					66.4	95.2	137	184	300
120					71.4	102	147	197	320
130					76.4	109	157	210	340
140					81.4	116	167	224	361
150					86.4	123	177	237	381
160								251	402
170								264	422
180								277	442
190								290	462
200								303	484

Prices in Ringgit Malaysia (RM) per 1000pcs. Only supplied in full carton quantities. All measurements in millimeters (mm).


Diameter (d)	M5		M6		M8		M10		M12		M14		M16		M20
pitch	0.8		1.0		1.25		1.5		1.75		2.0		2.0		2.5
	max	min	max	min	max	min	max	min	max	min	max	min	max	min	max	min
k	3.65	3.35	4.15	3.85	5.45	5.15	6.58	6.22	7.68	7.32	8.98	8.62	10.29	9.71	12.85	12.15
s	8	7.78	10	9.78	13	12.73	17	16.73	19	18.67	22	21.67	24	23.16	30	29.16
Length (L)	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price	pcs/ctn	Price
4
5
6
8	15,000		12,000		7,000
10	15,000		9,500		6,000		3,000
12	15,000		9,000		5,000		2,800
14					5,000		2,500
16	12,000		8,000		5,000		2,400		1,300		890
18					5,000
20	10,000		6,000		4,000		2,500		1,100		800
25	8,000		6,000		3,500		1,800		1,100		700				400
30	7,000		5,000		3,000		1,600		950		650		500		330
35	6,000		4,000		3,000		1,500		850		600		400		350
40	5,000		3,500		2,200		1,400		800		550		400		250
45	4,000		3,000		2,200		1,200		750		500		350		250
50	3,500		2,500		2,000		1,100		600		450		300		250
55					1,500		1,100		600		450		300		230
60					1,500		800		500		400		290		210
65					1,200		800		500		400		250		200
70					1,100		700		500		350		250		200
75					900		700		400		350		200		180
80					800		550		400		300		230		180
85							500		400		260		200		150
90							500		350		250		180		150
95							450		350		235				150
100							400		300		200		160		140
110							420		300		200				120
120							400		300		200				110
130									250		180				110
140							350		200		160				100
150							300		200		150				80
160											150				90
170															80
180															80
190															70
200															60

Quantity per carton (pcs)


Diameter (d)	M4	M5	M6	M8	M10	M12	M14	M16	M20
pitch	0.7	0.8	1.0	1.25	1.5	1.75	2.0	2.0	2.5
k	2.8	3.5	4	5.3	6.4	7.5	8.8	10	12.5
s	7	8	10	13	17	19	22	24	30
Length (L)	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn	pcs/ctn
4
5
6
8	15,000	12,000	7,000
10	15,000	9,500	6,000	3,000
12	15,000	9,000	5,000	2,800
14			5,000	2,500
16	12,000	8,000	5,000	2,400	1,300	890
18			5,000
20	10,000	6,000	4,000	2,500	1,100	800
25	8,000	6,000	3,500	1,800	1,100	700		400
30	7,000	5,000	3,000	1,600	950	650	500	330
35	6,000	4,000	3,000	1,500	850	600	400	350
40	5,000	3,500	2,200	1,400	800	550	400	250	150
45	4,000	3,000	2,200	1,200	750	500	350	250	150
50	3,500	2,500	2,000	1,100	600	450	300	250	150
55			1,500	1,100	600	450	300	230	130
60			1,500	800	500	400	290	210	130
65			1,200	800	500	400	250	200
70			1,100	700	500	350	250	200
75			900	700	400	350	200	180
80			800	550	400	300	230	180
85				500	400	260	200	150
90				500	350	250	180	150
95				450	350	235		150
100				400	300	200	160	140
110				420	300	200		120
120				400	300	200		110
130					250	180		110
140				350	200	160		100
150				300	200	150		80
160						150		90
170								80
180								80
190								70
200								60
